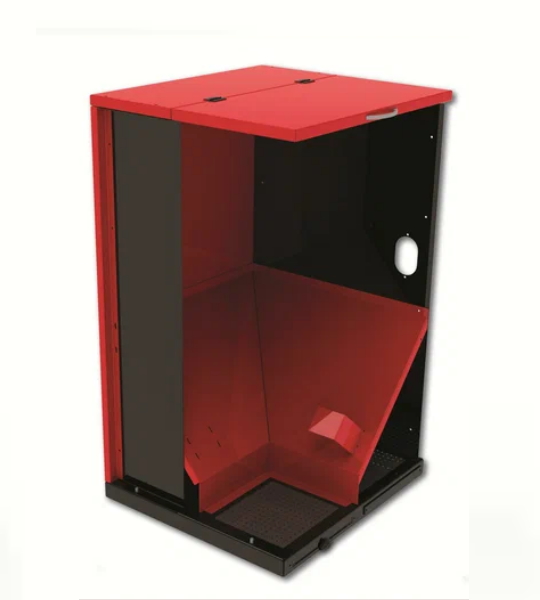

The pellet hopper is designed for boilers operating with pellets. The hopper capacity is determined based on the burner’s daily or weekly fuel consumption.
A hopper with a usable capacity of 500 liters holds 280–300 kg of pellets with a diameter of 6 mm.
Advantages:
-
The hopper is made of cold-rolled steel with a PVC coating.
-
Seals on the guide plates prevent pellets from spilling out.
-
The pellet hopper design allows selection of the installation side.
-
A convenient lid with a locking mechanism enables safe pellet filling.
-
The angled design of the collection plates significantly reduces the minimum required amount of pellets.
-
Pellets stored in the hopper are consumed in the same order as they are filled.
-
Discharge openings and an integrated container in the raised base ensure removal of pellet dust without emptying the hopper itself.
-
Depending on the hopper orientation, the pellet feed auger can be installed on either the right or left side.
-
Precise leveling of the hopper using screw-adjustable feet.
H x W x D: 1260 x 772 x 730 mm
